Live Streaming over WIFI Extension header
Micontroller
Chip:

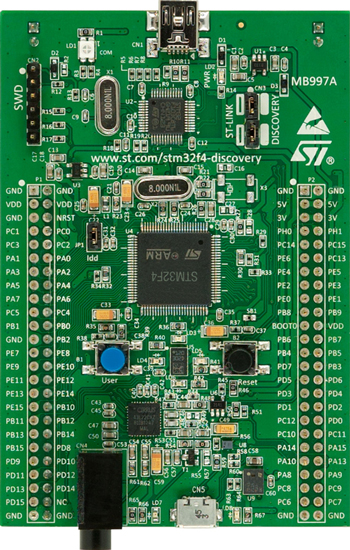

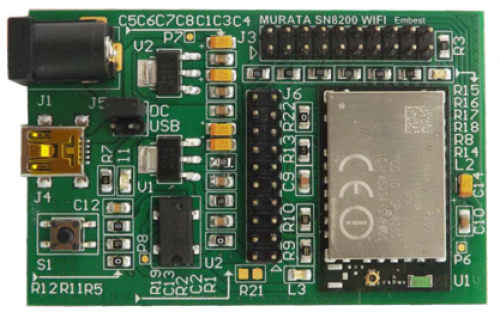

STM32F4DISCOVERYWIFI Module:
STM32F4DISCamera
Sensor:
STM32F4DIS-CAM
Foto
Online-Shop
http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/PF252419
http://www.element14.com/community/docs/DOC-54779/l/discover-wifi-add-on-board-for-stm32f4-discovery-kit
http://www.newark.com/stmicroelectronics/stm32f4dis-cam/module-1-3mp-camera-stm32f4-discovery/dp/47W1732?COM=knode-STM32F4-camerabuy
Preis
14.58 $
39.90 $
21.61 $
Eingänge
USB OTG FS with micro-AB
connector
Mini USB Plug
30-pin FPC Connector
Ausgänge
UART & SPI
WIFI (on board antenna) UART & SPI
N/A
Spannungs-versorgung
3 and 5 V DC
5 V DC
Bemerkung
The discovery board will get
the live stream from the camera with a resolution of QQVGA.
The WIFI module will transfer
the data from the camera to the platform with the rate of 10 FPS (Fram
Per Second).
The camera sensor capture the
video of the movement which is then being transferred.
Base Board:
Foto
Online-Shop
http://www.newark.com/stmicroelectronics/stm32f4dis-bb/expansion-stm32f4-cortex-m4-for/dp/47W1731?COM=knode-STM32F4-bboardbuy
Preis
27.90 $
Eingänge
–Connector for camera board
– Connector for LCD board
– Connector with UART , I2C, SPI, CAN,
PWM and GPIOs
Ausgänge
Spannungs-versorgung
It gets the voltage from the
discovery board.
Bemerkung
The base board take the role of
connecting the camera sensor to the microcontroller chip.
