Sensoren



Beschleunigungssensor LIS302DL



- 2.16V to 3.6V supply voltage

- <1 mW power consumption

- ± 2g/± 8g dynamically selectable full-scale

- I2C/SPI digital output interface

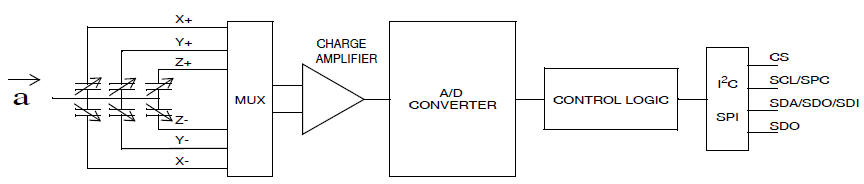

http://www.st.com/internet/com/TECHNICAL_RESOURCES/TECHNICAL_LITERATURE/DATASHEET/CD00135460.pdf, Seite 17

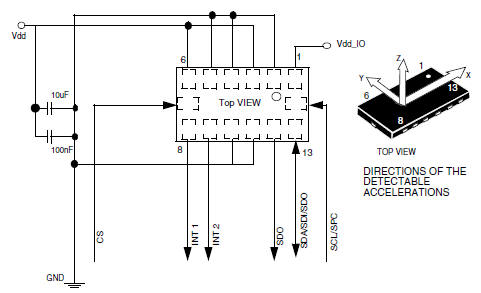

http://www.st.com/internet/com/TECHNICAL_RESOURCES/TECHNICAL_LITERATURE/DATASHEET/CD00135460.pdf, Seite 8

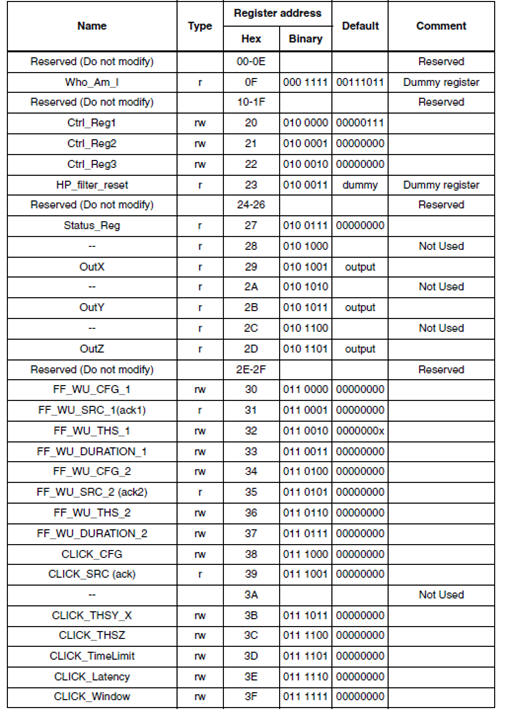

http://www.st.com/internet/com/TECHNICAL_RESOURCES/TECHNICAL_LITERATURE/DATASHEET/CD00135460.pdf, Seite 24



Temperatursensor


- Supported temperature range: -40 to 125 °C

- Precision: ±1.5 °C

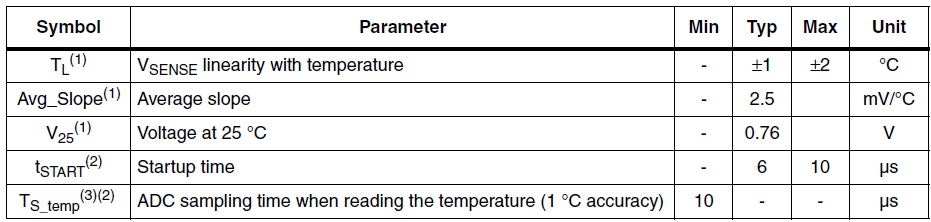

http://www.st.com/internet/com/TECHNICAL_RESOURCES/TECHNICAL_LITERATURE/REFERENCE_MANUAL/DM00031020.pdf, Table 67, Seite 123

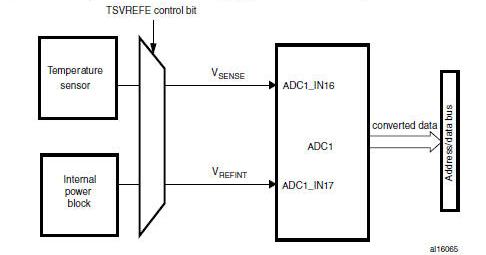

http://www.st.com/internet/com/TECHNICAL_RESOURCES/TECHNICAL_LITERATURE/REFERENCE_MANUAL/DM00031020.pdf, Seite 230

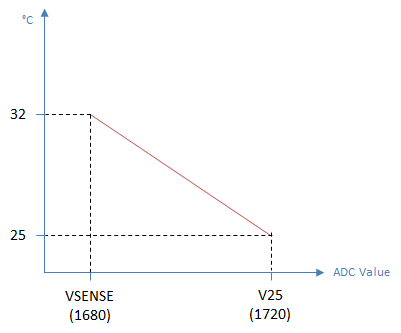

Temperature in °C = {(V25 - VSENSE) / Avg_Slope} + 25


- V25 = VSENSE value for 25° C

- Avg_Slope = average slope of the temperature
