Rotating Swimming Pixel
Winter Semester 2021/2022
Jihad Alkenani

 Oussama EL ECHI

3.9 Concept Development

To control this kind of project, we have to follow some procedures.

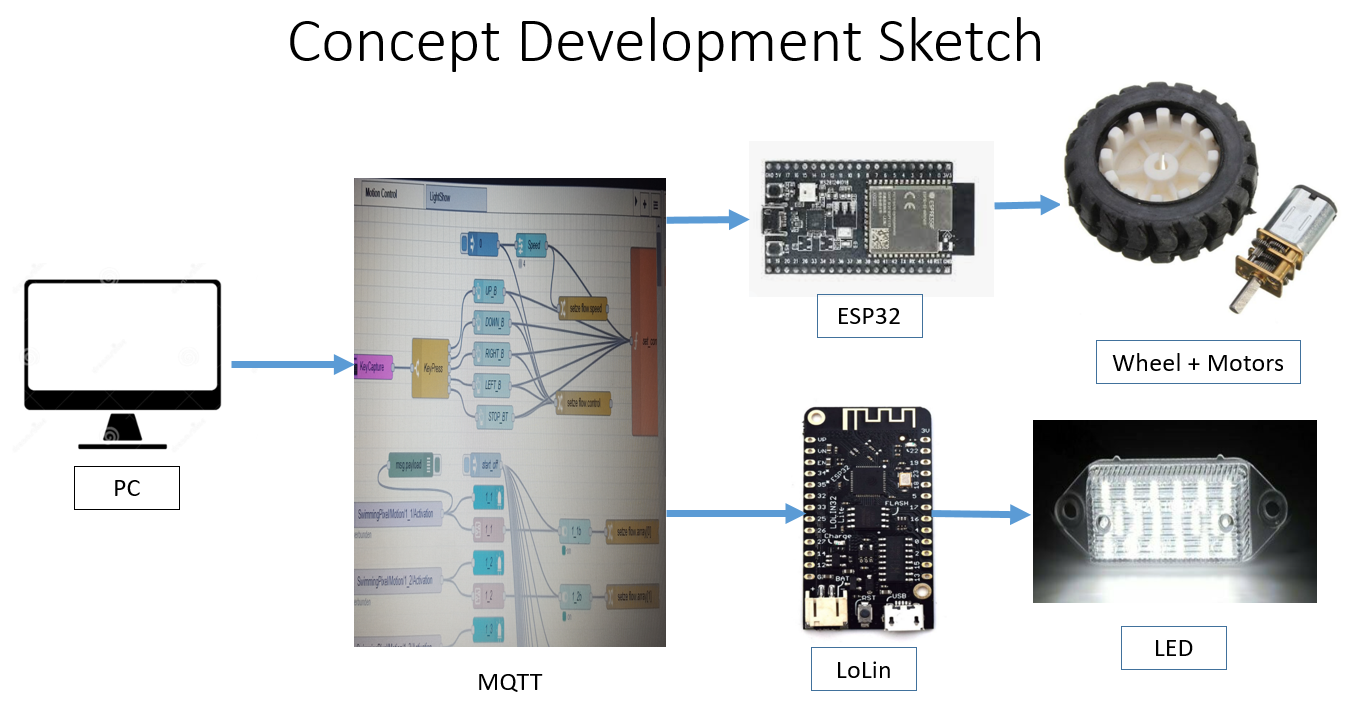

First of all we should open the MQTT interface via Laptop using a specific local network. Then can one control the movement and the light spots from that interface. There are two Microcontrollers, one for the motion and the other one is established for the LED illumination. We notice that there are two different batteries for every task. The whole system is working compatible to produce that beautiful process which is the Rotating Swimming Pixel.
